- Technical Parameter

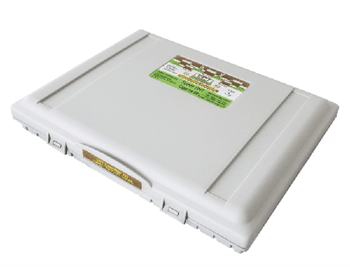

0402封装 70种容值 每种容值500片 贴片电容盒
| Datasheet | |
|---|---|
| 0402封装 70种容值 每种容值500片 贴片电容盒.pdf | |
- Commodity Description
规格：
产品外壳尺寸：280mm(长)*210mm(宽)*40mm(高)
内部小格尺寸：15mm(长)*22mm(宽)*16mm(高)
说明：
套装含精密贴片元件空盒一套;
0402封装贴片电容;
阻值范围：精选70种常用容值;
电容原厂质量保证
订购信息：
| 型号 | 描述 | 购买链接 | 型号 | 描述 | 购买链接 |
| C04-50 | 0402封装 70种容值 每种容值50片 |  | C08-50 | 0805封装 83种容值 每种容值50片 | |
| C04-100 | 0402封装 70种容值 每种容值100片 | C08-100 | 0805封装 83种容值 每种容值100片 | ||
| C04-200 | 0402封装 70种容值 每种容值200片 | C08-200 | 0805封装 83种容值 每种容值200片 | ||
| C04-500 | 0402封装 70种容值 每种容值50片 | C08-500 | 0805封装 83种容值 每种容值500片 | ||
| C06-50 | 0603封装 79种容值 每种容值50片 | | C12-50 | 1206封装 77种容值 每种容值50片 | |
| C06-100 | 0603封装 79种容值 每种容值100片 | C12-100 | 1206封装 77种容值 每种容值100片 | ||
| C06-200 | 0603封装 79种容值 每种容值200片 | C12-200 | 1206封装 77种容值 每种容值200片 | ||
| C06-500 | 0603封装 79种容值 每种容值500片 | C12-500 | 1206封装 77种容值 每种容值500片 |
容值表如下所示：
| 容值（0402） | 型号 | 参数 |
| 0.5pF | C1005COG1H0R5CT | NPO 50V ±0.25pF |
| 0.6pF | C1005COG1H0R6CT | NPO 50V ±0.25pF |
| 0.7pF | C1005COG1H0R7CT | NPO 50V ±0.25pF |
| 0.8pF | C1005COG1H0R8CT | NPO 50V ±0.25pF |
| 0.9pF | C1005COG1H0R9CT | NPO 50V ±0.25pF |
| 1.0pF | C1005COG1H1R0CT | NPO 50V ±0.25pF |
| 1.2pF | C1005COG1H1R2CT | NPO 50V ±0.25pF |
| 1.5pF | C1005COG1H1R5CT | NPO 50V ±0.25pF |
| 1.8pF | C1005COG1H1R8CT | NPO 50V ±0.25pF |
| 2.2pF | C1005COG1H2R2CT | NPO 50V ±0.25pF |
| 2.7pF | C1005COG1H2R7CT | NPO 50V ±0.25pF |
| 3.3pF | C1005COG1H3R3CT | NPO 50V ±0.25pF |
| 3.9pF | C1005COG1H3R9CT | NPO 50V ±0.25pF |
| 4.7pF | C1005COG1H4R7CT | NPO 50V ±0.25pF |
| 5.6pF | C1005COG1H5R6DT | NPO 50V ±0.5pF |
| 6.8pF | C1005COG1H6R8DT | NPO 50V ±0.5pF |
| 8.2pF | C1005COG1H8R2DT | NPO 50V ±0.5pF |
| 10pF | C1005COG1H100JT | NPO 50V ±5% |
| 12pF | C1005COG1H120JT | NPO 50V ±5% |
| 15pF | C1005COG1H150JT | NPO 50V ±5% |
| 18pF | C1005COG1H180JT | NPO 50V ±5% |
| 22pF | C1005COG1H220JT | NPO 50V ±5% |
| 27pF | C1005COG1H270JT | NPO 50V ±5% |
| 33pF | C1005COG1H330JT | NPO 50V ±5% |
| 39pF | C1005COG1H390JT | NPO 50V ±5% |
| 47pF | C1005COG1H470JT | NPO 50V ±5% |
| 56pF | C1005COG1H560JT | NPO 50V ±5% |
| 68pF | C1005COG1H680JT | NPO 50V ±5% |
| 82pF | C1005COG1H820JT | NPO 50V ±5% |
| 100pF | C1005COG1H101JT | NPO 50V ±5% |
| 120pF | C1005COG1H121JT | NPO 50V ±5% |
| 150pF | C1005COG1H151JT | NPO 50V ±5% |
| 180pF | C1005COG1H181JT | NPO 50V ±5% |
| 220pF | C1005COG1H221JT | NPO 50V ±5% |
| 270pF | C1005X7R1H271KT | X7R 50V ±10% |
| 330pF | C1005X7R1H331KT | X7R 50V ±10% |
| 390pF | C1005X7R1H391KT | X7R 50V ±10% |
| 470pF | C1005X7R1H471KT | X7R 50V ±10% |
| 560pF | C1005X7R1H561KT | X7R 50V ±10% |
| 680pF | C1005X7R1H681KT | X7R 50V ±10% |
| 820pF | C1005X7R1H821KT | X7R 50V ±10% |
| 1.0nF | C1005X7R1H102KT | X7R 50V ±10% |
| 1.2nF | C1005X7R1H122KT | X7R 50V ±10% |
| 1.5nF | C1005X7R1H152KT | X7R 50V ±10% |
| 1.8nF | C1005X7R1H182KT | X7R 50V ±10% |
| 2.2nF | C1005X7R1H222KT | X7R 50V ±10% |
| 2.7nF | C1005X7R1H272KT | X7R 50V ±10% |
| 3.3nF | C1005X7R1H332KT | X7R 50V ±10% |
| 3.9nF | C1005X7R1H392KT | X7R 50V ±10% |
| 4.7nF | C1005X7R1H472KT | X7R 50V ±10% |
| 5.6nF | C1005X7R1H562KT | X7R 50V ±10% |
| 6.8nF | C1005X7R1H682KT | X7R 50V ±10% |
| 8.2nF | C1005X7R1H822KT | X7R 50V ±10% |
| 10nF | C1005X7R1H103KT | X7R 50V ±10% |
| 12nF | C1005X7R1C123KT | X7R 16V ±10% |
| 15nF | C1005X7R1C153KT | X7R 16V ±10% |
| 18nF | C1005X7R1C183KT | X7R 16V ±10% |
| 22nF | C1005X7R1C223KT | X7R 16V ±10% |
| 27nF | C1005X7R1C273KT | X7R 16V ±10% |
| 33nF | C1005X7R1C333KT | X7R 16V ±10% |
| 39nF | C1005X7R1A393KT | X7R 10V ±10% |
| 47nF | C1005X7R1A473KT | X7R 10V ±10% |
| 56nF | C1005X7R1A563KT | X7R 10V ±10% |
| 68nF | C1005X7R1A683KT | X7R 10V ±10% |
| 82nF | C1005X7R1A823KT | X7R 10V ±10% |
| 100nF | C1005X7R1A104KT | X7R 10V ±10% |
| 220nF | C1005X5R0J224KT | X5R 6.3V ±10% |
| 330nF | C1005X5R0J334KT | X5R 6.3V ±10% |
| 470nF | C1005X5R0J474KT | X5R 6.3V ±10% |
| 1.0uF | C1005X5R0J105KT | X5R 6.3V ±10% |
相关介绍：
我们的贴片元件盒分为：
SMT/SMD贴片电阻盒、SMT/SMD贴片电容盒、SMT/SMD贴片电感盒、精密贴片元件空盒等多系列产品。
贴片元件封装齐全：
电阻盒：0402封装、0603封装、0805封装、1206封装
电容盒：0402封装、0603封装、0805封装、1206封装
电感盒：0402封装、0603封装、0805封装、1008封装
SMT/SMD贴片电阻盒分为128种阻值以及510种阻值两种，满足您的不同需求!
